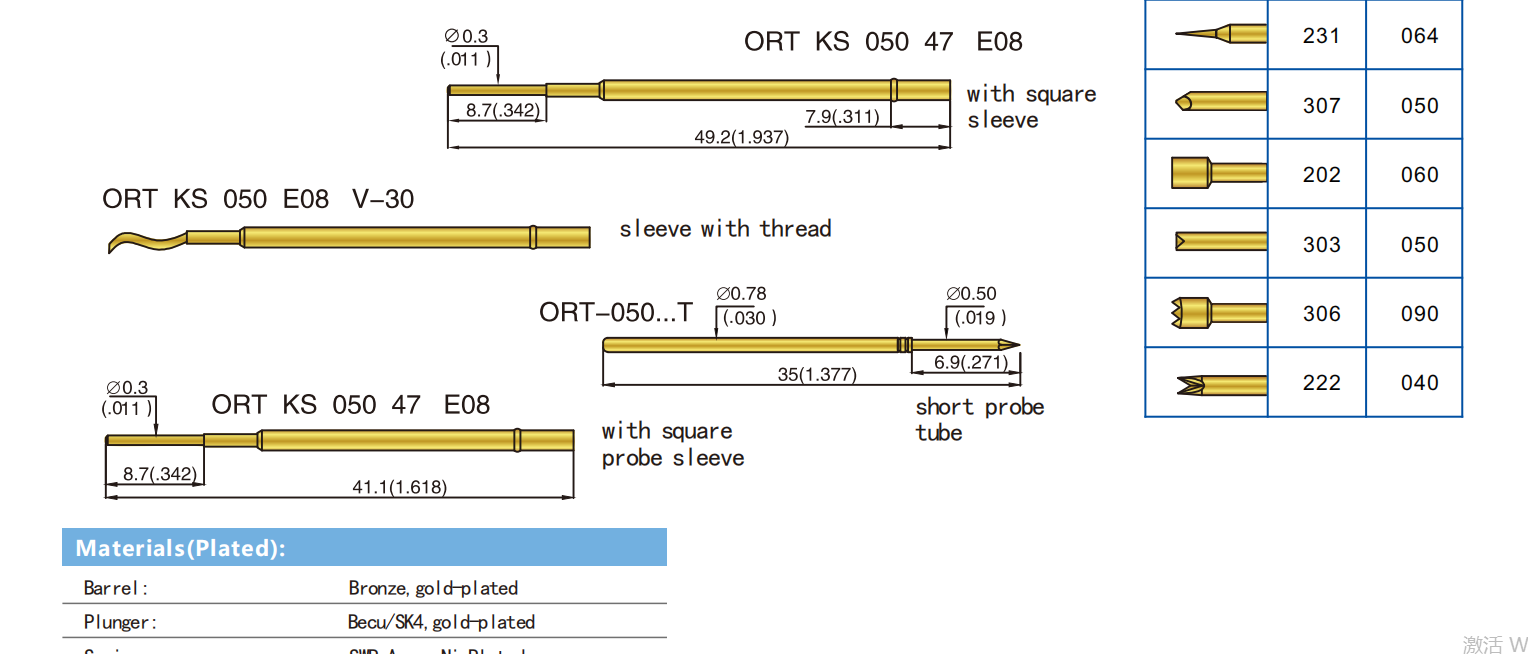

Model: 050mil series

Diameter: 0.78mm

Total length: 43.2mm

Rated working stroke: 6.4mm

Rated current: 3A

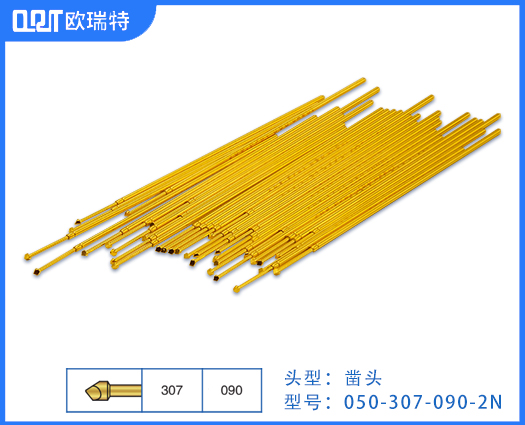

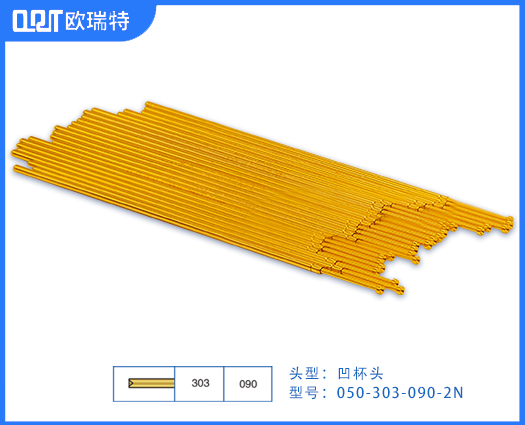

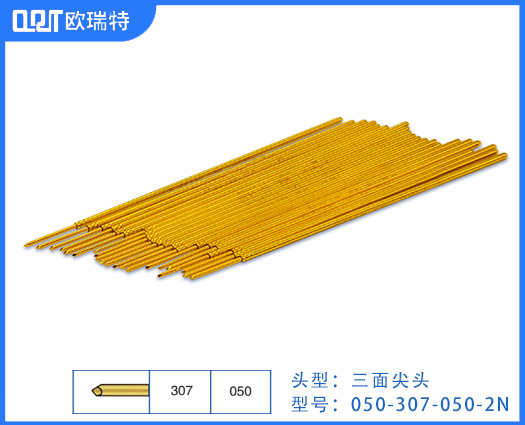

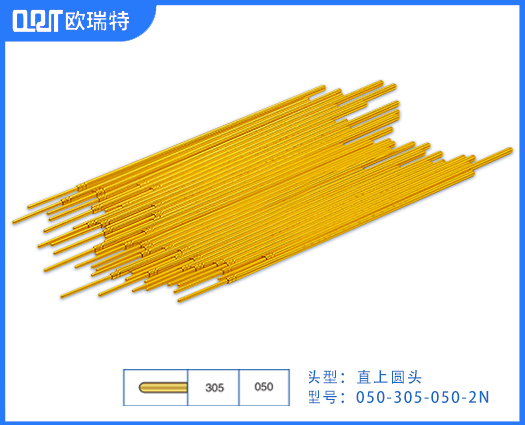

Needle shapes: nine claws, four claws, round head, triangular cone head, pointed tip, etc

Needle sleeve diameter: 0.95mm

Needle sleeve total length: hollow tube 40.6mm, square tail 49.2mm
